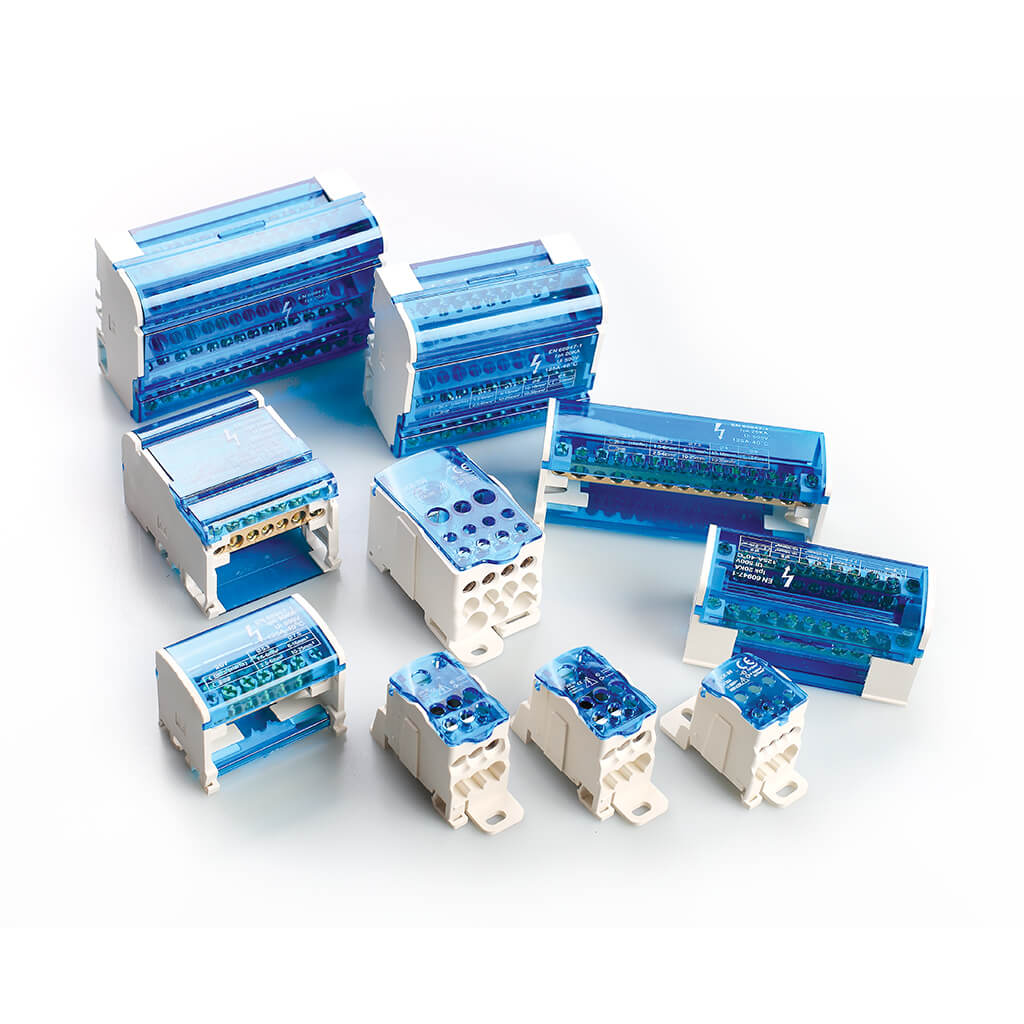

Casete distributie

Casete distributie

Temperatura lucru: -25 grade- + 55°C;
Material: alama;
Laterale poliamida;
Capac policarbonat;
Prindere pe sina omega 35 mm
EN 60715;

Categorie: Distribuitori

Descriere

Casete distributie	Diametru gaura	Dimensiune cablu fara pin terminal	Dimensiune cablu cu pin terminal	A	Nr poli	H (mm)	l (mm)	L (mm)
2-7/100	2×7,5+5×5,3	2×10÷25+5×2,5÷6	2×6÷16+5×1,5÷6	100	2	45	51	67
2-15/125	2×9+2×7,5+11×5,3	2×10÷35+2×10÷25+11×2,5÷6	2×10÷16+2×6÷16+11×1,5÷6	125	2	44	50,5	133
4-7/100	2×7,5+5×5,3	2×10÷25+5×2,5÷6	2×6÷16+5×1,5÷6	100	4	87	50	66,5
4-11/125	2×9+2×7,5+7×5,3	2×10÷35+2×10÷25+7×2,5÷6	2×10÷16+2×6÷16+7×1,5÷6	125	4	88	48	100
4-15/125	2×9+2×7,5+11×5,3	2×10÷35+2×10÷25+11×2,5÷6	2×10÷16+2×6÷16+11×1,5÷6	125	4	87	50	136

Distribuitor monopolar	A	Numar de intrari/iesiri	Inaltime (mm)	Latime (mm)	Lungime (mm)
125A	125	1×10-35; 1×6-16 / 6×2,5-16	46	29	77
160A	160	1×16-70; 1×6-16 / 6×2,5-16	46	29	77
250A	250	1×35-120 / 4×2,5-10; 5x 2,5-16; 2×6-35	50	46	96
400A	400	1×95-185 / 4×2,5-10; 5x 2,5-16; 2×6-35	50	46	96
