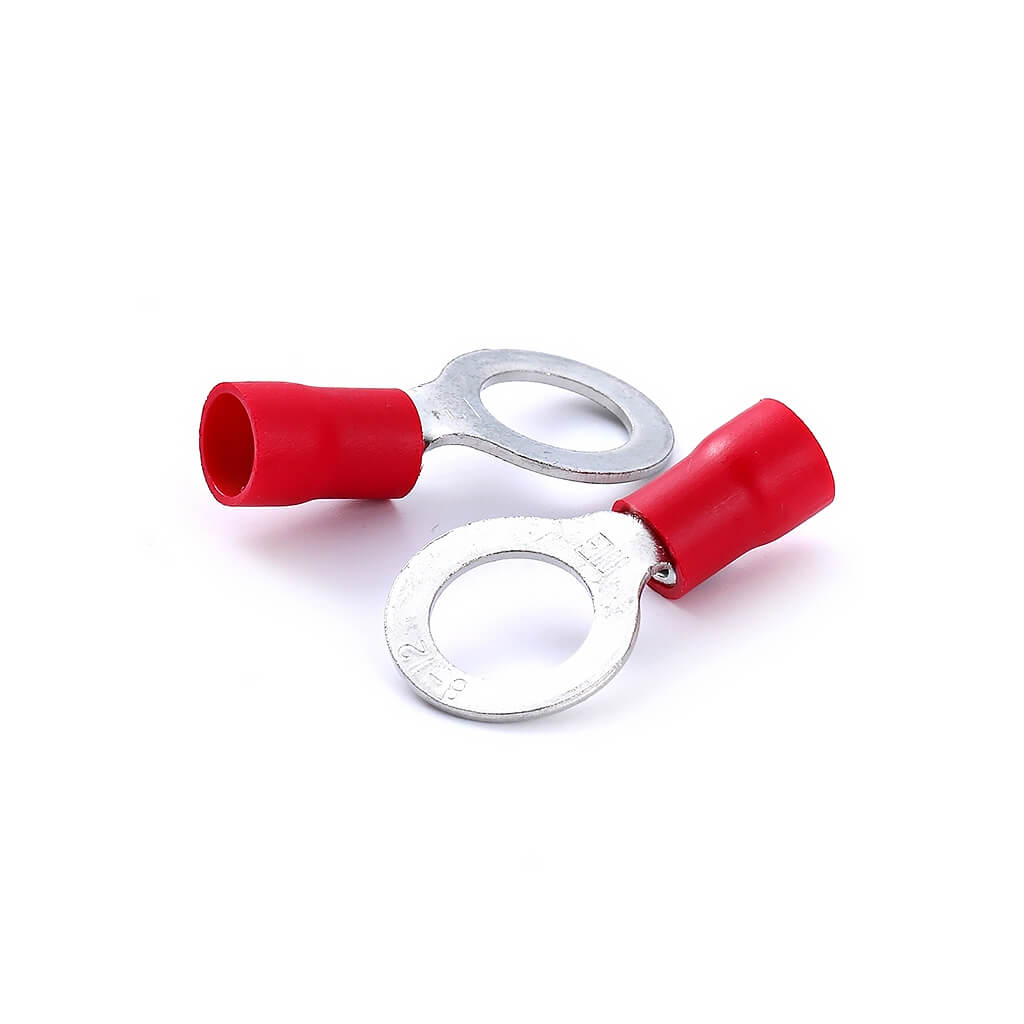

Papuci izolati inel

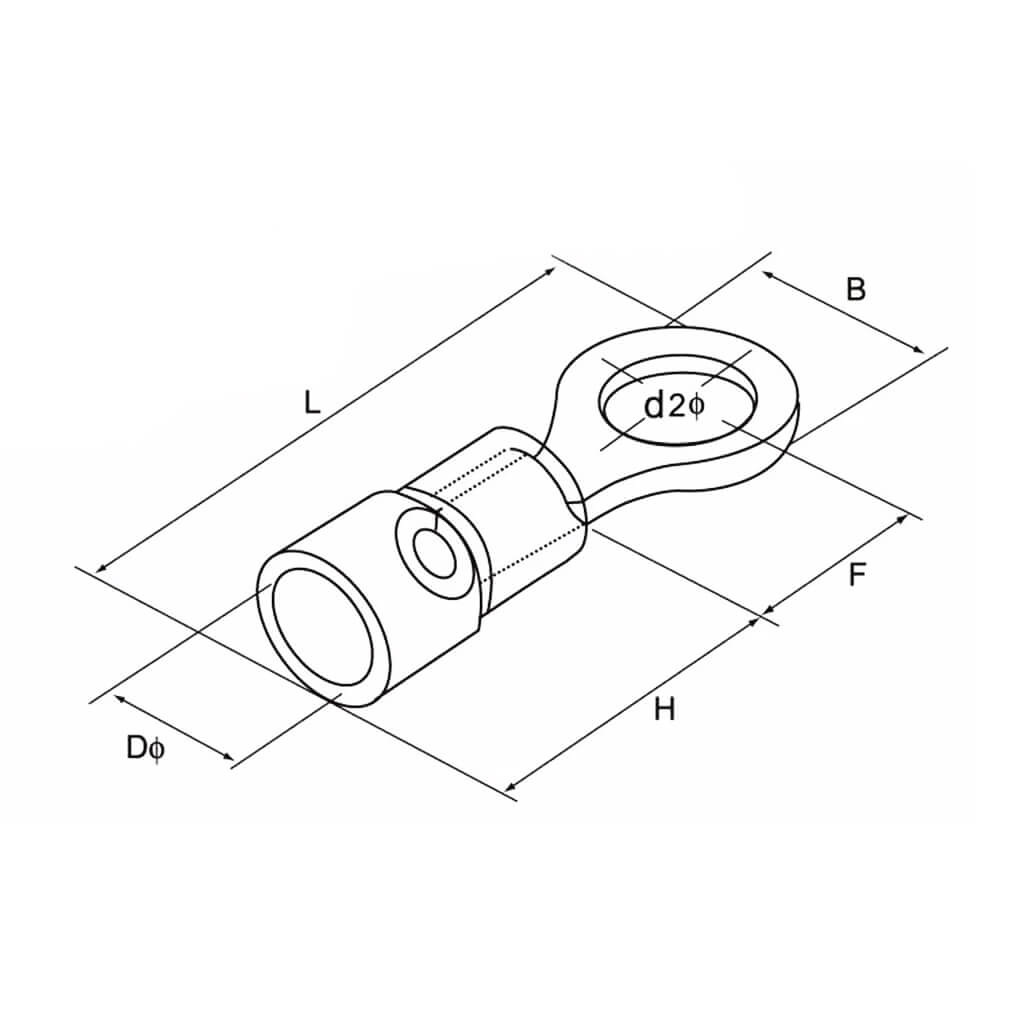

Papuci izolati inel schema

Papuci izolati inel

Papuci izolati inel schema

Papuci izolati inel

Material: cupru stanat;
Izolatie: PVC;
Imax: 19A-48A;
Certificat CE
EN 61000-6-3:2007
EN 61000-6-1:2007

Categorie: Conectica

Descriere

Papuc tip inel izolat	Dimensiune cablu	Dimensiune surub	d2	B	L	F	H	Dφ	Culoare
1.25-3.5	0.5-1.5mm²	M3	3.7	5.7	17.8	4.95	10	4.3
1.25-4		M4	4.3	6.6	20.1	6.3
1.25-5		M5	5.3	9.8	23	8.5
1.25-6		M6	6.4	11.6	27.5	11.1
1.25-8		M8	8.4	11.6	27.5	11.1
1.25-10		M10	10.5	13.6	31.6	13.9
2-3	1.5-2.5mm²	M3	3.2	6.6	17.8	4.3	10	4.9
2-4		M4	4.3	8.5	21	7
2-5		M5	5.3	8.1	22.5	7.75
2-6		M6	6.4	12	27.6	11
2-8		M8	8.4	12	27.6	11
2-10		M10	10.5	13.6	30.2	13.9
5.5-4	4-6mm²	M4	4.3	7.2	21.4	5.9	13	6.7
5.5-5		M5	5.3	9.5	25.5	8.3
5.5-6		M6	6.4	12	31.5	13
5.5-8		M8	8.4	15	33.7	13.7
5.5-10		M10	10.5	15	33.7	13.7
5.5-12		M12	13	19.2	38.1	16
